54.6V 2A Electric Bike Charger - Universal 5 Outputs

$58.88 ~~$73.98~~

Shipping calculated at checkout.

54.6V/48V 2A Power Adapter

5-IN-1 Universal Charger

Input 100-240VAC 50/60Hz

Output 54.6V 2A (Work for 2A, 1.5A, 1A, 0.5A)

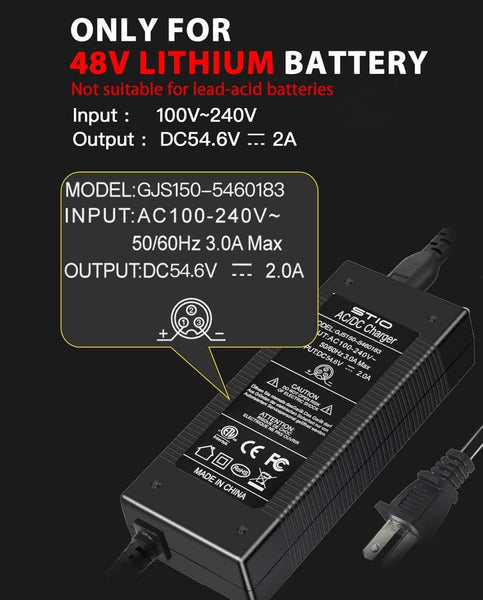

STIO power adapter is used for 54.6V/48V lithium battery.NOT work for 36V/24V/21.6V/12V version.Don't use for Lead-acid Battery.

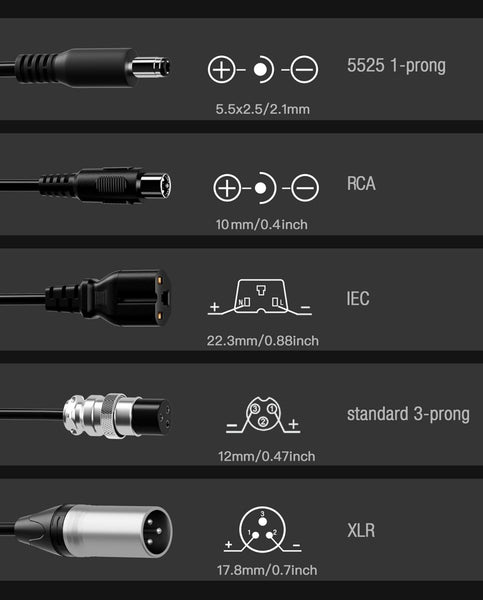

With five plugs it can be switched between devices: DC 5.5x2.5mm/DC 5.5x2.1mm, Pin 3-Prong, Standard 3-Prong(0.47inch), 10mm RCA,XLR 3-Prong(0.7inch).

Equipped with Multiple Protection. Low energy consumption and high energy efficiency much shortened the charging time.

Charger LED Indicator Instructions

In Charging	The GREEN light is on when the power is plugged in, after connecting the device, the GREEN light turns into RED.
Fully Charged	The RED light turns into GREEN after several hours charging.
Battery is BROKEN	If the GREEN light is on when the power is plugged in, after connecting the device, the light goes out or stay GREEN. You'd better check your battery, and replace the battery.
Charger is BROKEN	There is no light on when the power is plugged in. Please mail us to change another one.

54.6V/48V 2A DC Power Adapter compatible with Variouos Models

Ecotric Hammer, Ecotric Seagull, Ecotric Matt Black 48V Fat Tire FAT20S900, Ecotric 48V Fat Tire FAT20850C, Ecotric Matt Green 48V Fat Tire
Lectric XP(1.0, 2.0,3.0 models), Lectric XP Step-Thru(1.0,2.0,3.0 models), LECTRIC XP Lite, Lectric XPremium
Kugoo M4, Kugoo X1, Kugoo M4 Pro, Kugoo C1, Kugoo G2 PRO
48V VSETT 8/VSETT 8+/VSETT 9+
48V KAABO Mantis 8/Mantis 10
SAMEBIKE 20LVXD30/LO26
WUXI D-Power DPLC
48V ZERO 8/ZERO 9
48V Skywalker 8S
Evercross H5

How to choose charger and the charging port?

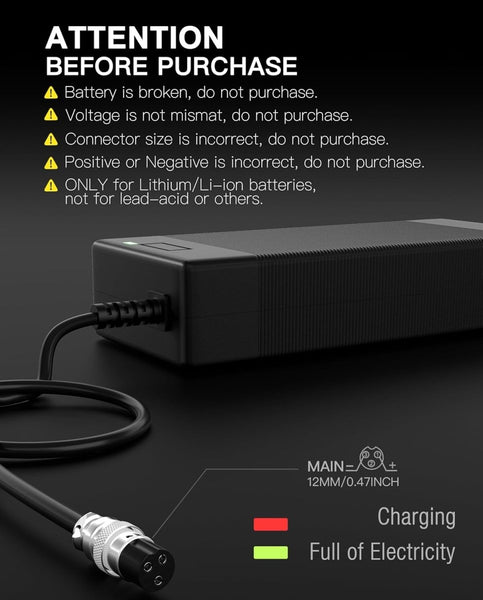

Before purchase, please check your original charger and make sure the OUTPUT and CONNECTOR SIZE matches. 1)Check your battery type : Lithium/Li-ion battery packs only. Don’t use for Lead Acid battery. 2)Check or measure your connector type and size.

Why my charger does not work?

1) Plugs are not well connected. 2) The charger does not fit your device. 3) Your battery is broken,please measure its voltage. 4) If the charger indicator is not on, maybe it is damaged,we will change for you.

WARNINGS

1) Do not connect the charger if the charge port or charge cable is wet. 2) Risk of electric shock. 3) Do not disassemble the case or touch the metal contacts.

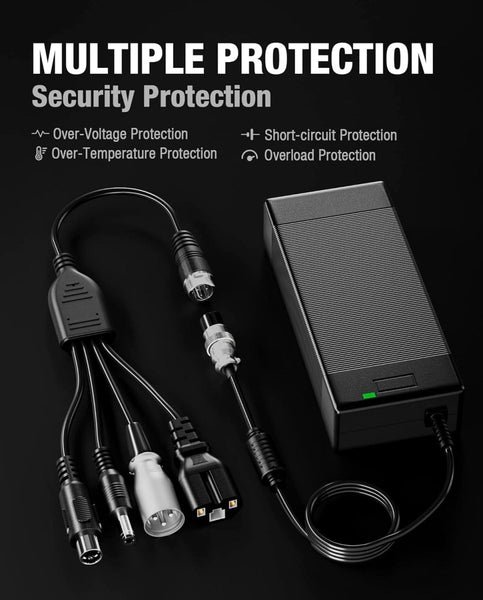

【Safeguard Smart Charger】Certified by ETL. STIO 54.6V 2A Universal Smart Charger - Equipped with Multiple Protection : Short-circuit Protection, Over Voltage Protection, Over Temperature Protection, Overload Protection.

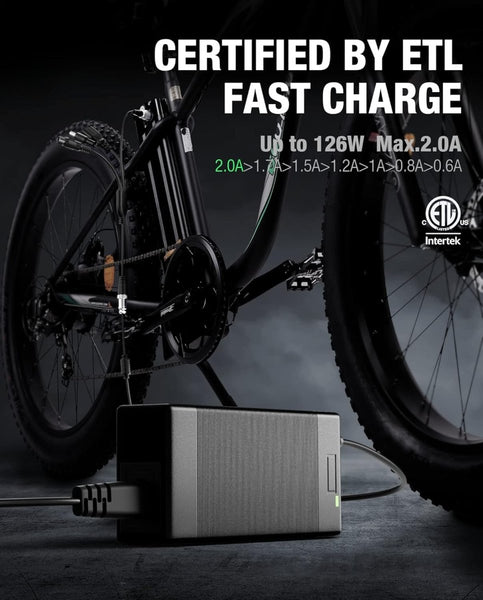

【Shorten Charging Time】Max 2.0A Fast Charge. Max power is up to 109W. Low energy consumption and high energy efficiency much shortened the charging time. STIO CHARGER 2.0A>1.7A>1.5A>1.2A>1A>0.8A>0.6A.

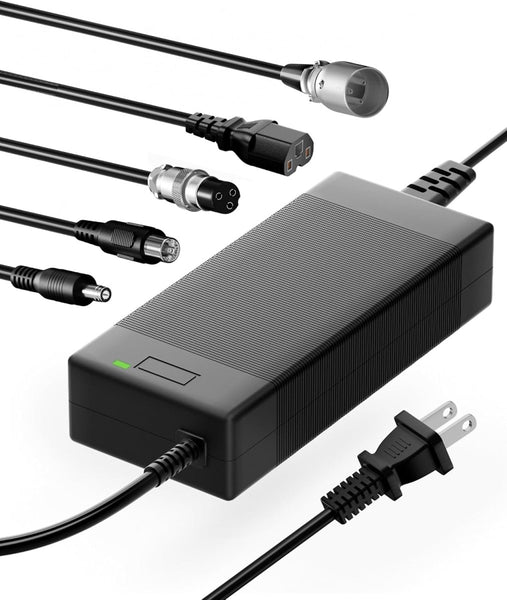

【Buy One Get Five 】Equipped with 5 Connectors - Standard 3 Prong GX16(0.47inch) / DC5.5-2.5/2.1 / IEC / RCA / XLR. Pay for one charger, get five connectors. STIO charger is suitable for 48V ebike / wheelchair / ATV and so on.
【Various Compatibility Models】Compatible with Ecotric Hammer, Ecotric Matt Black 48V Fat Tire FAT20S900, Ecotric 48V Fat Tire FAT20850C, Ecotric Matt Green 48V Fat Tire, WUXI D-Power DPLC, 48V Kaabo Mantis 8/10, 48V ZERO 8/9, 48V VSETT 8/8+/9+, 48V Skywalker 8S, Evercross H5, Kugoo M4/X1/M4 Pro, SAMEBIKE 20LVXD30/LO26, Ecotric Seagull, Lectric XP(1.0,2.0,3.0 models), Lectric XP Step-Thru (1.0, 2.0, 3.0 models), LECTRIC XP Lite, Lectric XPremium, KUGOO C1, KUGOO G2 PRO...
【7x24 Hours Customer Service】 We support 3 Year Hassle-Free Warranty and Technology Support. Package List : 1 Charger , 1 AC Cable , 1 Multifunction Cable with 4 Adapters.

Brand	stio
Connectivity Technology	Xlr
Connector Type	RCA
Compatible Devices	for 48V Ecotric Bike/Lectric XP/Evercross H5, 3Prong GX16/DC 5.5x2.5mm/XLR/IEC/RCA Connector Power Supply Adapter for 48V Lithium Battery
Included Components	Charger
Special Feature	Fast Charge
Color	Black
Input Voltage	110 Volts (AC)
Mounting Type	Wall Mount
Amperage	2 Amps
